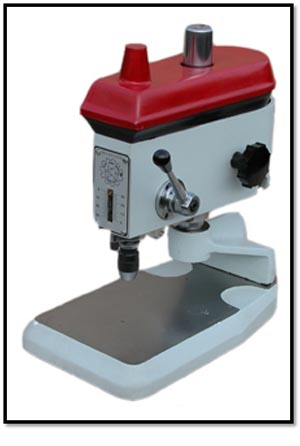

Precision Drilling Machine


Salient Features

Application

Small and very small holes in high precision components, Tool manufacture, prototype in high precision components, laboratory work, batch manufacture in the electronic, jewellery, clock making and related industries.

Specifications

Drilling Capacity

In steel: 0-3 mm

Drill Chuck Capacity:

0-3mm

Drill Chuck Capacity:

0-3mm

Spindle Travel:30mm



Distances

Horizontal overhang distance b/w column and drilling axis: 90 & 180 mm



Drilling Adjustment along the column (vertical) : 150 mm

Table

Size: 160 x 150 mm

Size

Floor area required(LxBxH): 300 x 185 x 350 mm

Spindle Speeds(in rpm)

Lower speed stage(Step less) : 1000-4000



Higher speed stage(step less) : 1000-20000

Mains Operation:

220 V , 50 Hz, 0.85 AMP

Spindle Taper:

30J1

Spindle Runout :

0.005 mm

Perpendicularity of the base :

0.03mm

Machine weight:

15kgs

Standard Equipment

Electrical, Drill chuck & switch plate etc.



Note : Same models are also available with servo drives.
